How a Process Is Created in Linux: From fork() to exec()

Creating a process is one of the most fundamental operations in an operating system. Every program you run—whether it's a shell command, a web server, or a background daemon—goes through this lifecycle.

In Unix-like systems, process creation is a two-step dance:

1. fork() – duplicate the current process

1. exec() – replace the process image with a new program

Let's break this down step by step, including what happens to memory, page tables, and how Copy-On-Write (COW) makes everything efficient.

1. What Is a Process?

A process is a running instance of a program, consisting of:

• Program code (text)

• Data (global & static variables)

• Heap (dynamic memory)

• Stack (function calls, local variables)

• CPU registers

• File descriptors

• Virtual address space

Each process is isolated and managed by the kernel.

2. The Role of fork()

fork() creates a new process by duplicating the calling process.

• The original process → parent

• The new process → child

Both continue execution from the same instruction after fork().

Key Behavior

• Parent receives child PID

• Child receives 0

• On failure, fork() returns -1

3. Basic fork() Example

#include <stdio.h>
#include <unistd.h>

int main() {
    pid_t pid = fork();

    if (pid == 0) {
        printf("Child process (PID=%d)\n", getpid());
    } else {
        printf("Parent process (PID=%d), child PID=%d\n", getpid(), pid);
    }

    return 0;
}

Output (order not guaranteed)

Parent process (PID=1000), child PID=1001
Child process (PID=1001)

4. What fork() Really Copies

Conceptually, fork() duplicates:

• Virtual memory layout

• File descriptor table

• Signal handlers

• Process metadata

⚠️ But modern kernels do NOT eagerly copy memory.

This is where Copy-On-Write comes in.

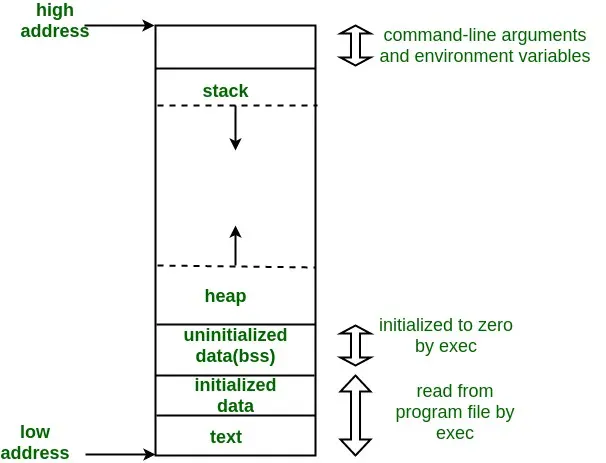

5. Process Memory Layout

Each process has a virtual address space that looks like this:

6. Copy-On-Write (COW)

Instead of copying all memory pages during fork():

1. Parent & child share the same physical memory pages

1. Pages are marked read-only

1. Actual copying happens only if one process writes

Why COW Is Brilliant

• fork() becomes very fast

• Memory usage is minimized

• Ideal for fork() → exec() pattern

7. COW in Action (Code Example)

#include <stdio.h>
#include <unistd.h>

int global = 10;

int main() {
    pid_t pid = fork();

    if (pid == 0) {
        global = 20;  // triggers Copy-On-Write
        printf("Child: global=%d\n", global);
    } else {
        sleep(1);
        printf("Parent: global=%d\n", global);
    }

    return 0;
}

What Happens Internally

1. After fork() → parent & child share the page

1. Child writes to global

1. Kernel:

- Allocates a new page

- Copies data

- Updates child's page table

1. Parent remains unchanged

8. Page Tables & COW

• Parent & child page tables point to same physical frames

• Write attempt → page fault

• Kernel resolves fault by copying the page

9. File Descriptors After fork()

• File descriptors are shared

• File offsets are shared

• Reference counts are incremented

int fd = open("file.txt", O_WRONLY);
fork();
write(fd, "Hello\n", 6);  // affects same file offset

10. From fork() to exec()

Usually, fork() alone isn't enough. We want the child to run a different program.

That's where exec() comes in.

11. What exec() Does

exec() replaces the current process image:

• Old code, data, heap, stack → destroyed

• New program loaded

• PID stays the same

Common Variants

• execl()

• execv()

• execvp()

• execve() (system call)

12. fork() + exec() Example (Shell Pattern)

#include <stdio.h>
#include <unistd.h>

int main() {
    pid_t pid = fork();

    if (pid == 0) {
        execl("/bin/ls", "ls", "-l", NULL);
        perror("exec failed");
    } else {
        wait(NULL);
        printf("Child finished\n");
    }

    return 0;
}

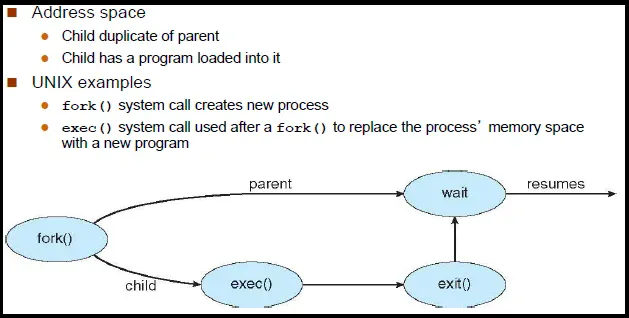

What Happens

1. Parent calls fork()

1. Child created (COW memory)

1. Child calls exec()

1. Kernel:

- Loads /bin/ls

- Sets up new memory layout

- Jumps to main()

13. Memory Before vs After exec()

14. Why fork() + exec() Instead of One Call?

fork() → flexibility

Parent can:

• Set up pipes

• Redirect I/O

• Change environment

exec() → clean program start

This design is a cornerstone of Unix philosophy.
